BIII V antenna An entirely different BIII antenna

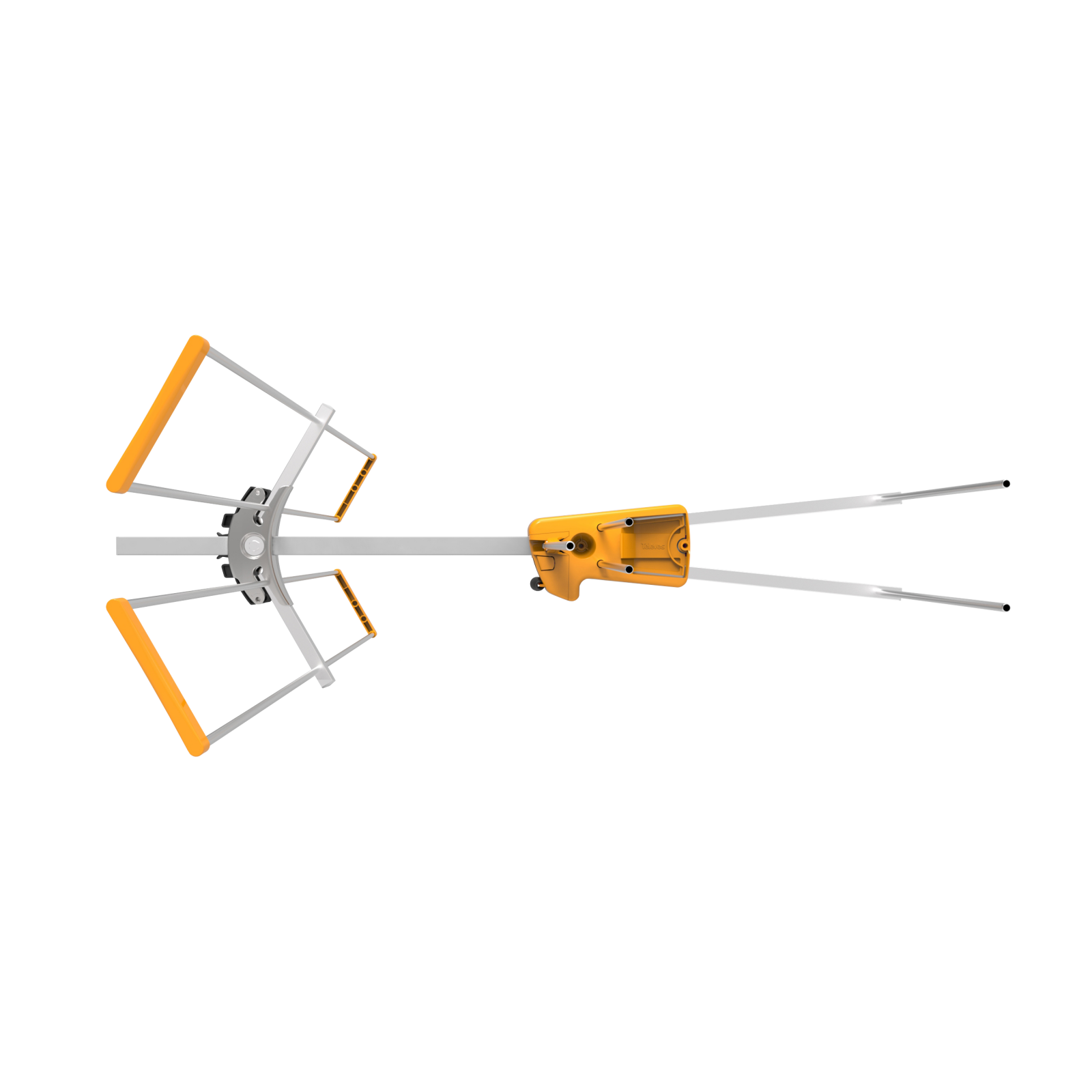

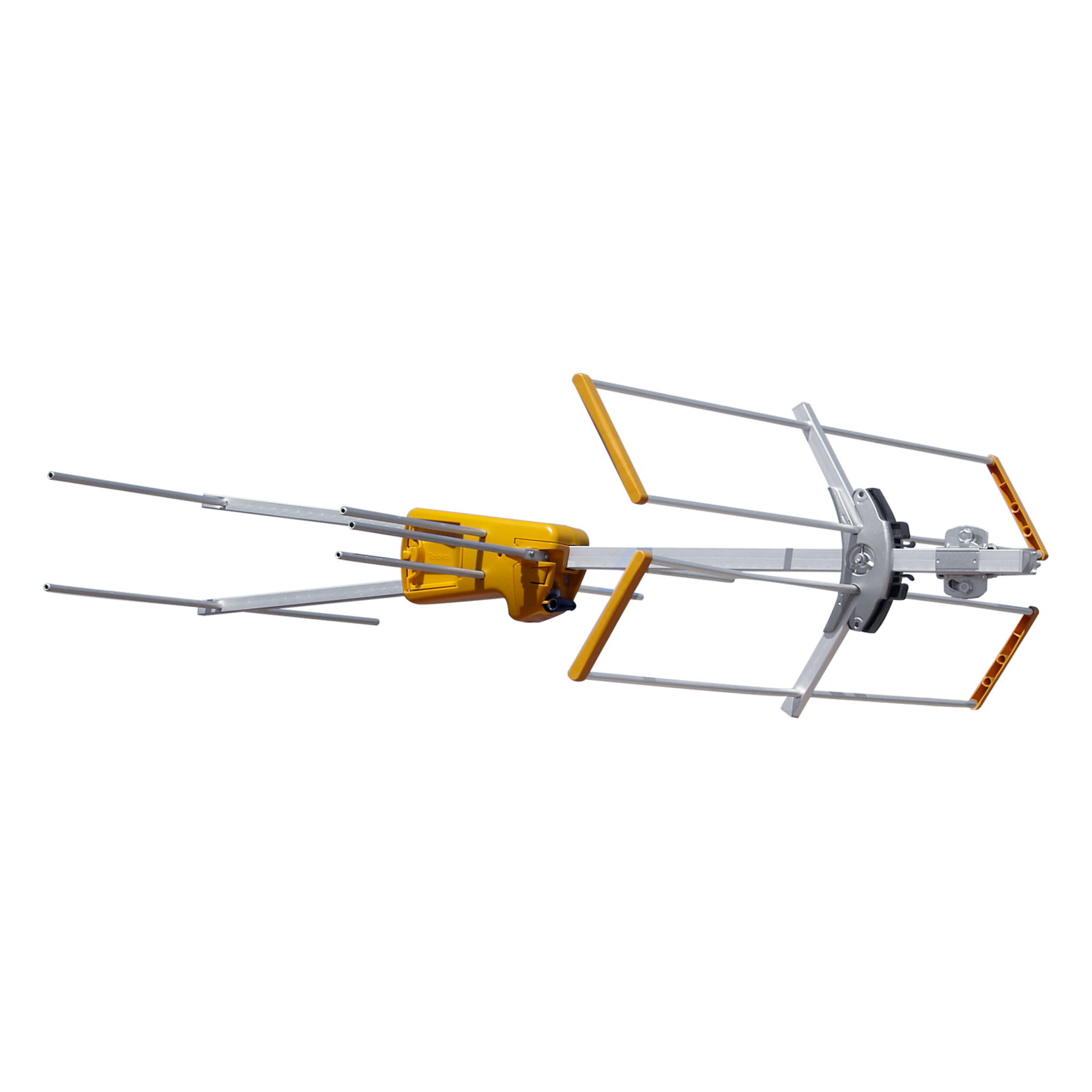

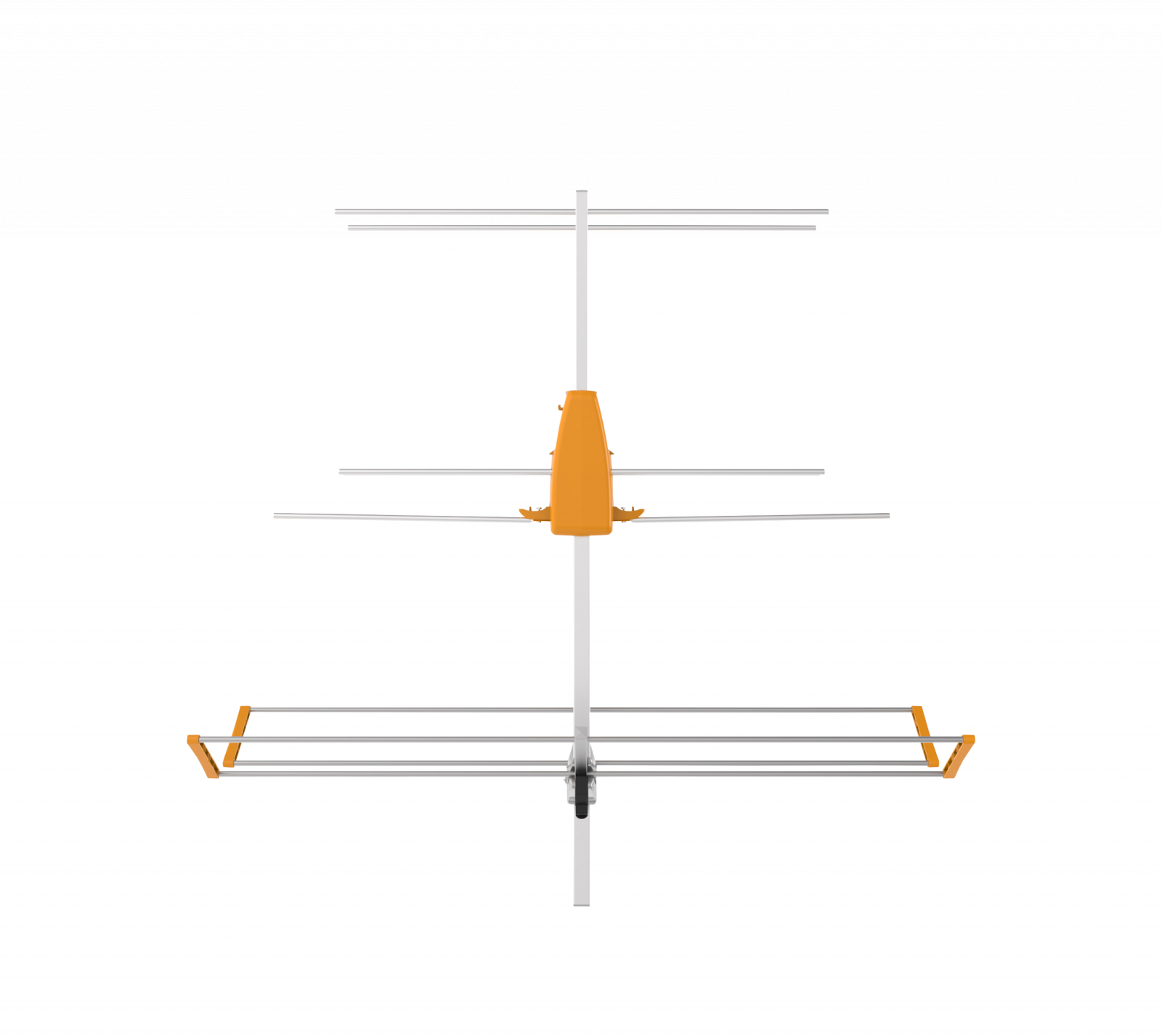

A Yagi antenna for TV reception in BIII with an innovative design. Equipped with 4 directors on two vertically stacked grids in an angular aperture, a 4-element reflector and a simple dipole.Supplied in individual packing.

Description

Highlights
  • Compared to other BIII antennas, the BIII V antenna has an innovative, eye-catching design, which optimizes the antenna length without losing its electrical features. The result is a compact antenna with outstanding performance and a differentiating design
  • Provides high gain in BIII, with exceptional rejection characteristics regarding the adjacent bands
  • Allows both horizontal and vertical polarization mounting
  • The clamp allows the adjustment of the antenna elevation on the vertical axis
Discover
  • Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
  • The mast-mounting  system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
  • Designed and manufactured in Europe, our products undergo the most stringent quality controls
  • The connection box includes a balun for impedance matching
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth Âș 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
