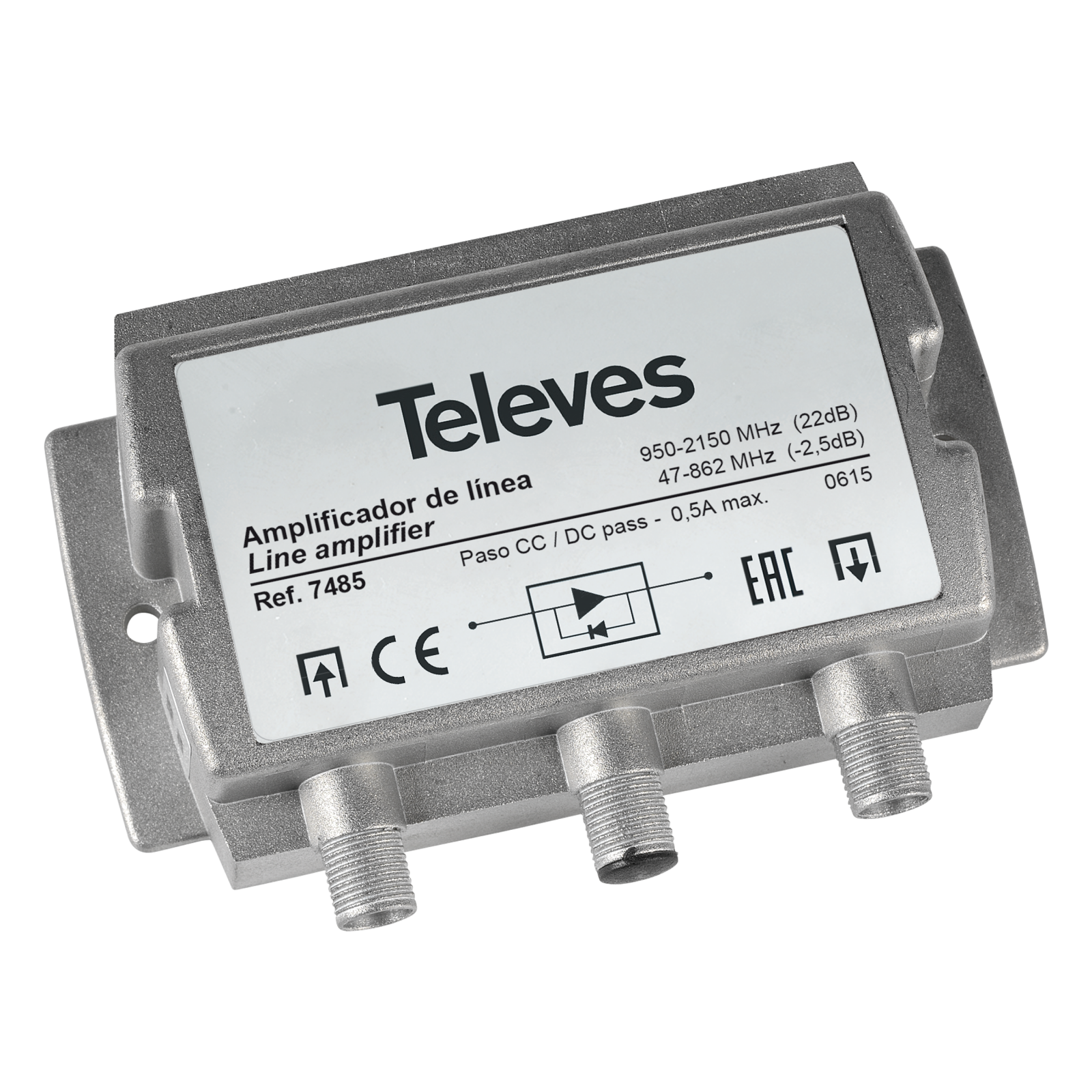

Line amplifier for satellite Terrestrial pass-through

Line amplifier for satellite Terrestrial pass-through

Line amplifier equipped with a terrestrial and a satellite input. Provides an output with an amplified satellite band and low terrestrial losses.

An input and an output with a maximum DC current circulation (from output to input) of 0.5 A.

Categories: , , , Tag: Brand:

Description

Highlights
  • Satellite gain: 22 dB, with a high output level
  • Low through losses for terrestrial: -2.5 dB
  • High-shielding Zamak chassis
  • Low noise figure
  • F connectors
  • Indoor or outdoor installation (with ref. 4163 housing)
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth º 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
