ONU 3 PoE+ 50W: 4x 1Gb Ethernet, 2x FXS, RF Overlay

ONU (Optical Network Unit) module, also known as customer-premises equipment (CPE), designed to be installed in each room that requires connectivity within a GPON network. Its function is to receive the optical signal sent by the OLT and provide services such as internet, telephony, and television.

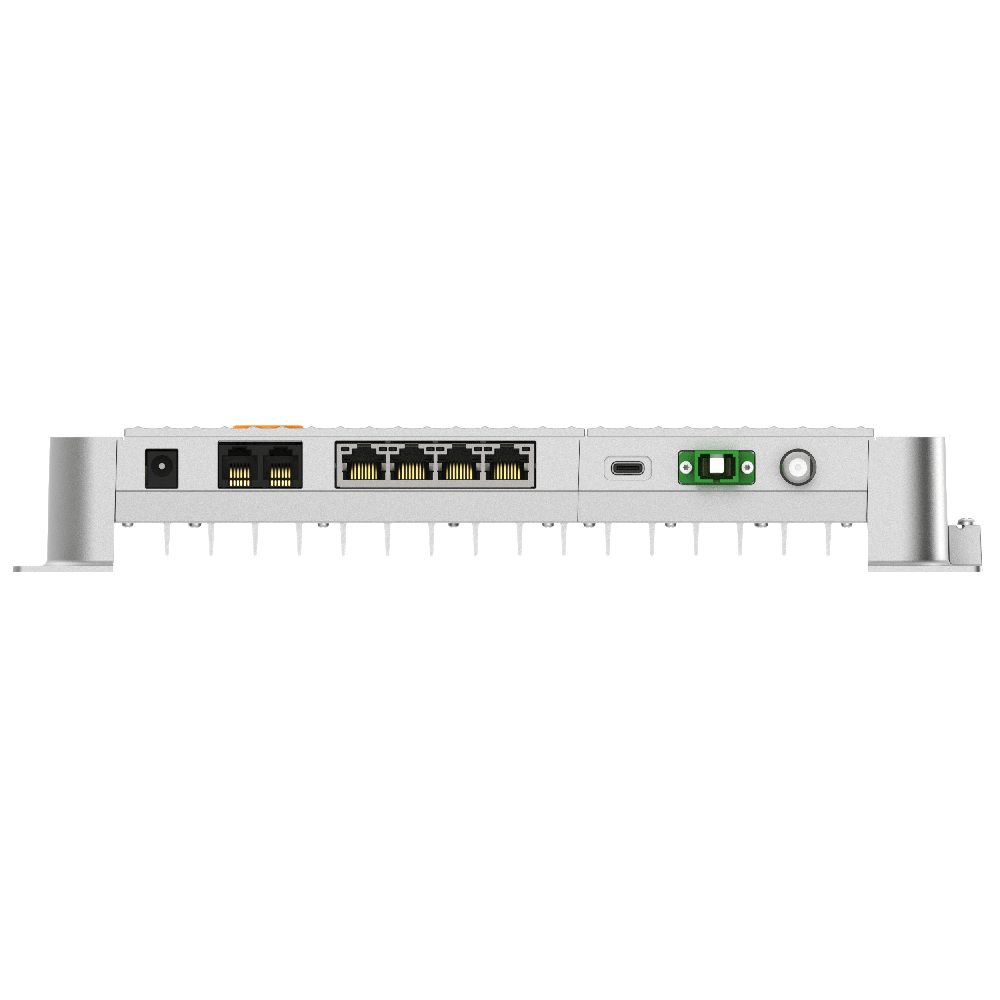

With a design specifically intended for the Hospitality sector, it can deliver up to 16 services to each user, allowing for more entertainment options in guest rooms and a greater number of management tools for the establishment. In addition, it offers extensive connectivity with 4 Ethernet ports (RJ45) of up to 1 Gbps, 2 telephone ports (RJ11), and 1 “F” connector for television.

This device includes PoE power supply of up to 50 W total through its 4 Ethernet ports. It is ideal for use in common areas or FTTB (Fiber to the Building) scenarios, enabling the powering of multiple devices such as video surveillance cameras and access points without the need for electrical outlets.

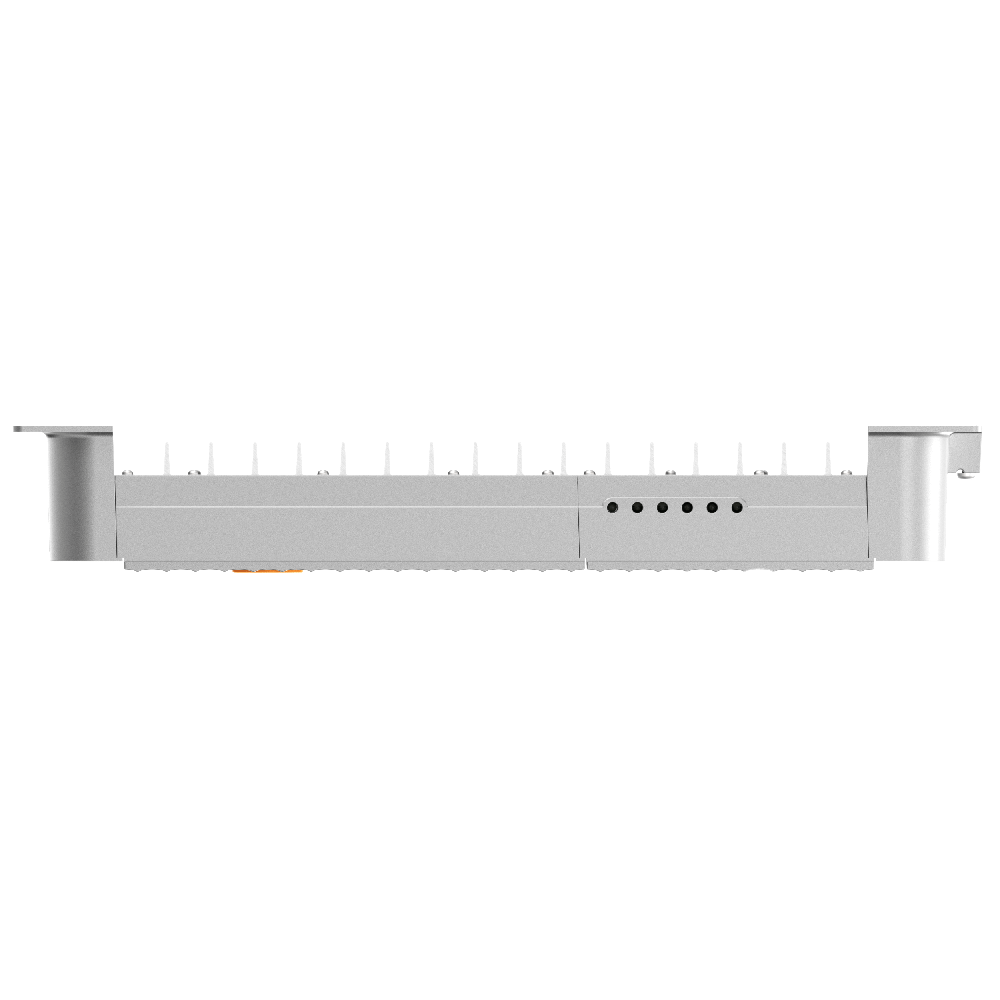

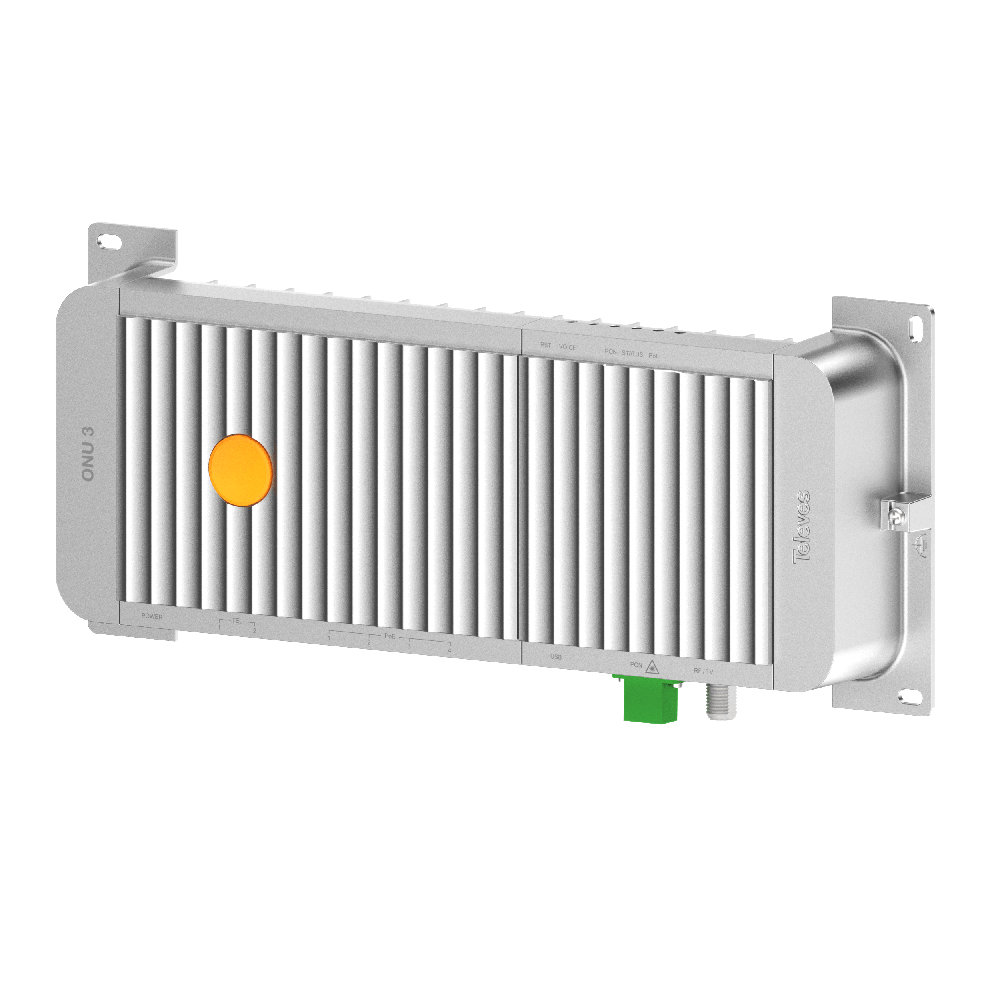

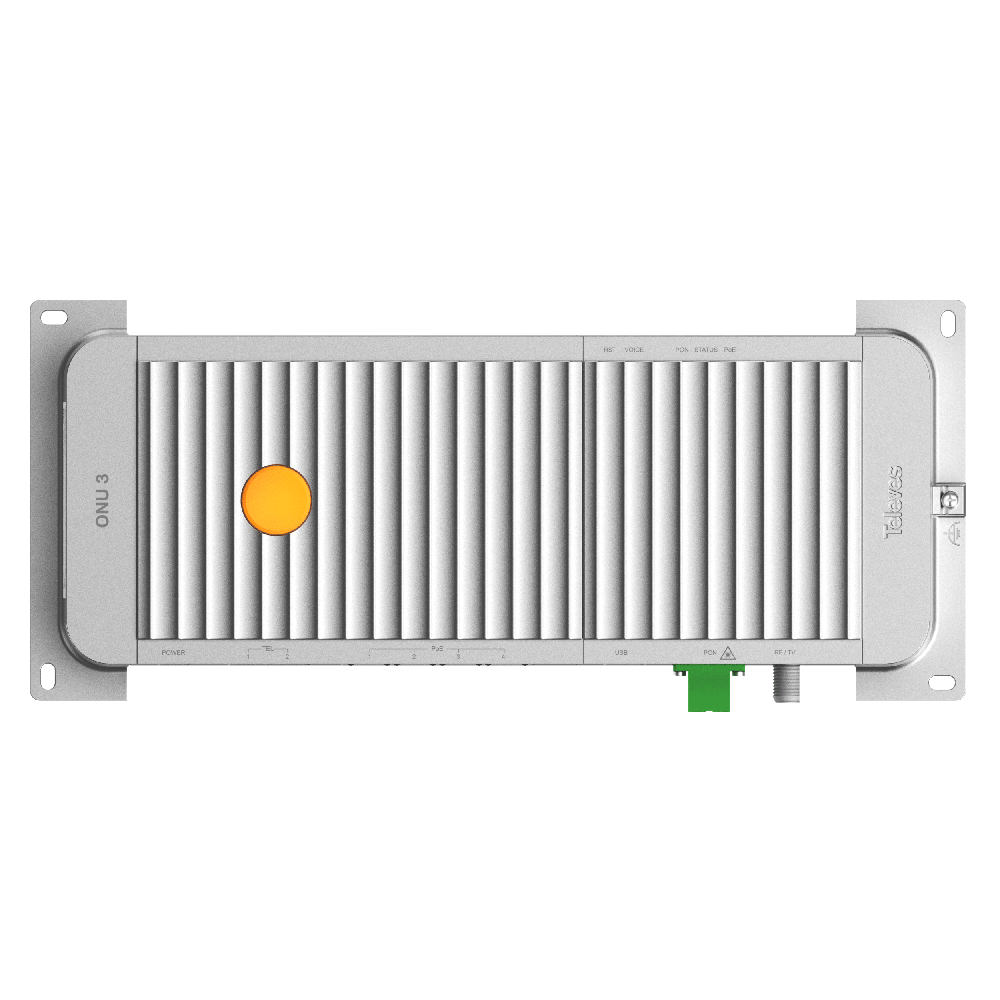

Its chassis, designed for professional environments, allows for easy and secure wall or ceiling mounting using screws. The zamak construction provides robustness and excellent heat dissipation, maintaining optimal performance even in unventilated spaces.

Description

Highlights

Designed to be integrated into a fiber optic network with GPON protocol
Energy-efficient thanks to its low power consumption
Compatible with switches that incorporate PoE technology, allowing them to be integrated in a GPON network while providing power to multiple devices
Small Form Pluggable (SFP) module
SC/APC connector
Layer 2 switching functionalities
VLAN tag management, classification and filtering
ITU-T G.984 GPON compliant
GEM Port multicast support

Discover

What is a SFP?

The Small Form-Factor Pluggable (SFP) devices are adapters that generate an interface to allow access to an Ethernet signal through Optical Fiber. These devices can be connected to the inputs of different Ethernet and GPON equipment, allowing the transmission/reception of the information by connecting to sigle-mode or multi-mode fiber or Ethernet cables.

Among the advantages of using SFP modules, we can highlight the reduction of space, lower energy consumption, or the increase of transmission distances.

Which SFP do I need?

Based on the devices to which they are connected, the transmission speed, or the type of cable used, several options are available in the whole range of media converters. The compatibility between the SPFs and the different Ethernet and GPON equipment is described below.

	1GbE Transceivers			1/10GbE Transceiver	10GbE Transceivers		1GbE RJ45 Transceiver	ONU	GPON Transceivers
	769150	769210	769212	291221	769214	769412	769411	769520	769410/13	769414/15
SFP Switches (768115, 768116, 768150, 769140, 769141, 769144, 769147, 769152)	OK	OK	OK	OK	–	–	–	OK	–	–
SFP+ Switches (769145, 769146, 769148, 769149, 769151, 769152, 769153)	OK	OK	OK	OK	OK	OK	–	OK	–	–
SFP+ Routers (769115, 769122)	OK	OK	OK	OK	OK	–	–	–	–	–
OLT512EVO (769403)	OK	–	OK	OK	OK	OK	OK	–	OK	OK
OLT3072 (769420, 769421, 769422)	–	–	OK	OK	–	OK	OK	–	OK	–
Media Converter (769215)	OK	OK	OK	OK	–	–	–	–	–	–
WaveData (769002)	OK	OK	OK	OK	–	–	–	–	–	–
