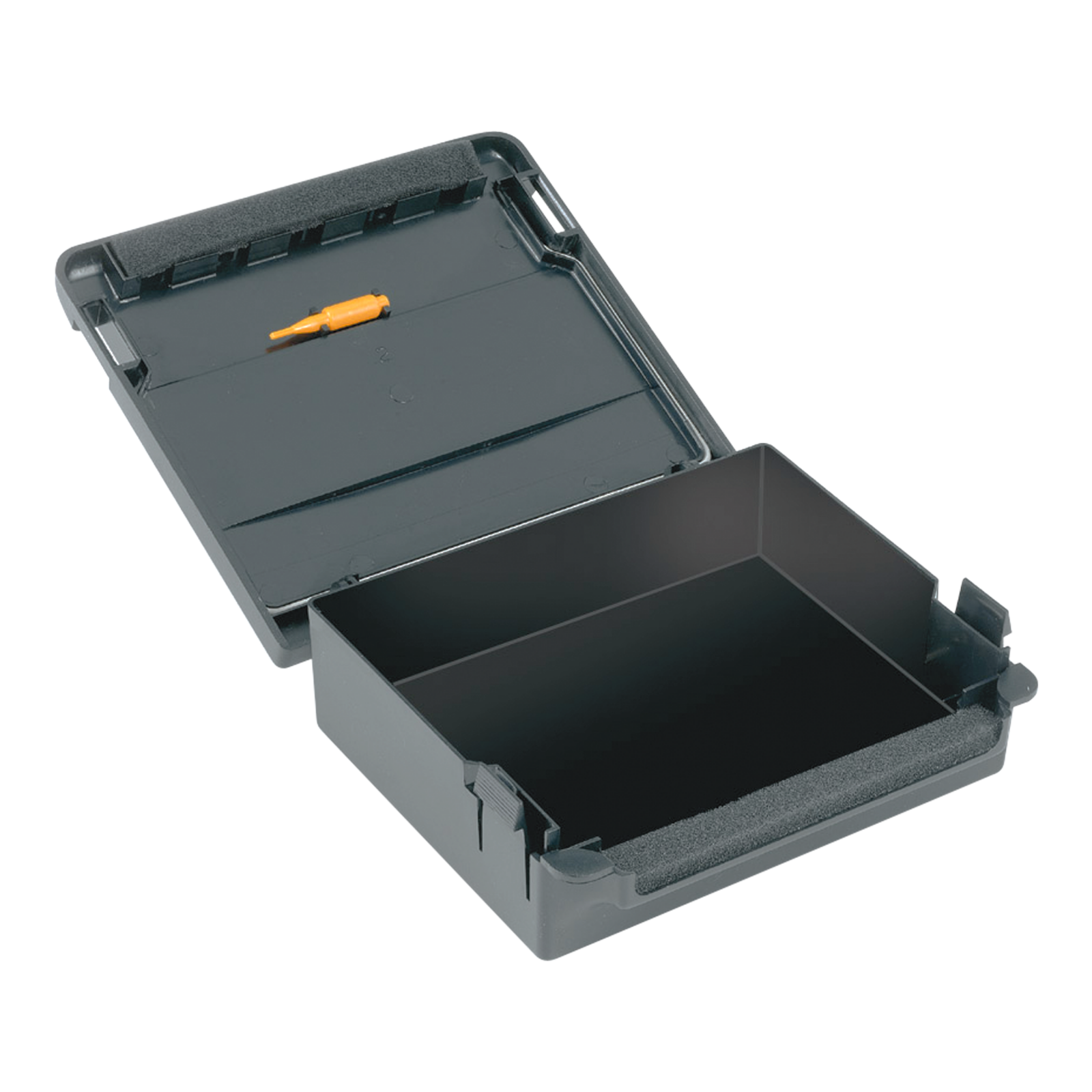

Outdoor case large model

Protective case for the outdoor installation of any device requiring a larger model, from filters and amplifiers to splitters and taps.


Description

Highlights
  • External dimensions: 136x127x45mm
  • Internal dimensions: 125x97x35mm
  • Built in grey ABS plastic (RAL 7004)
  • Durability and UV resistance validated under the ISO 4892-3:2016 standard
  • Includes a plastic tool for making adjustments in the hosted devices
  • Hinged lid
  • Wall and mast mounting (flange and screws provided)
  • IP22 protection index
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth ยบ 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
