Panel antenna (LTE700, 2nd Digital Dividend) 4 dipoles

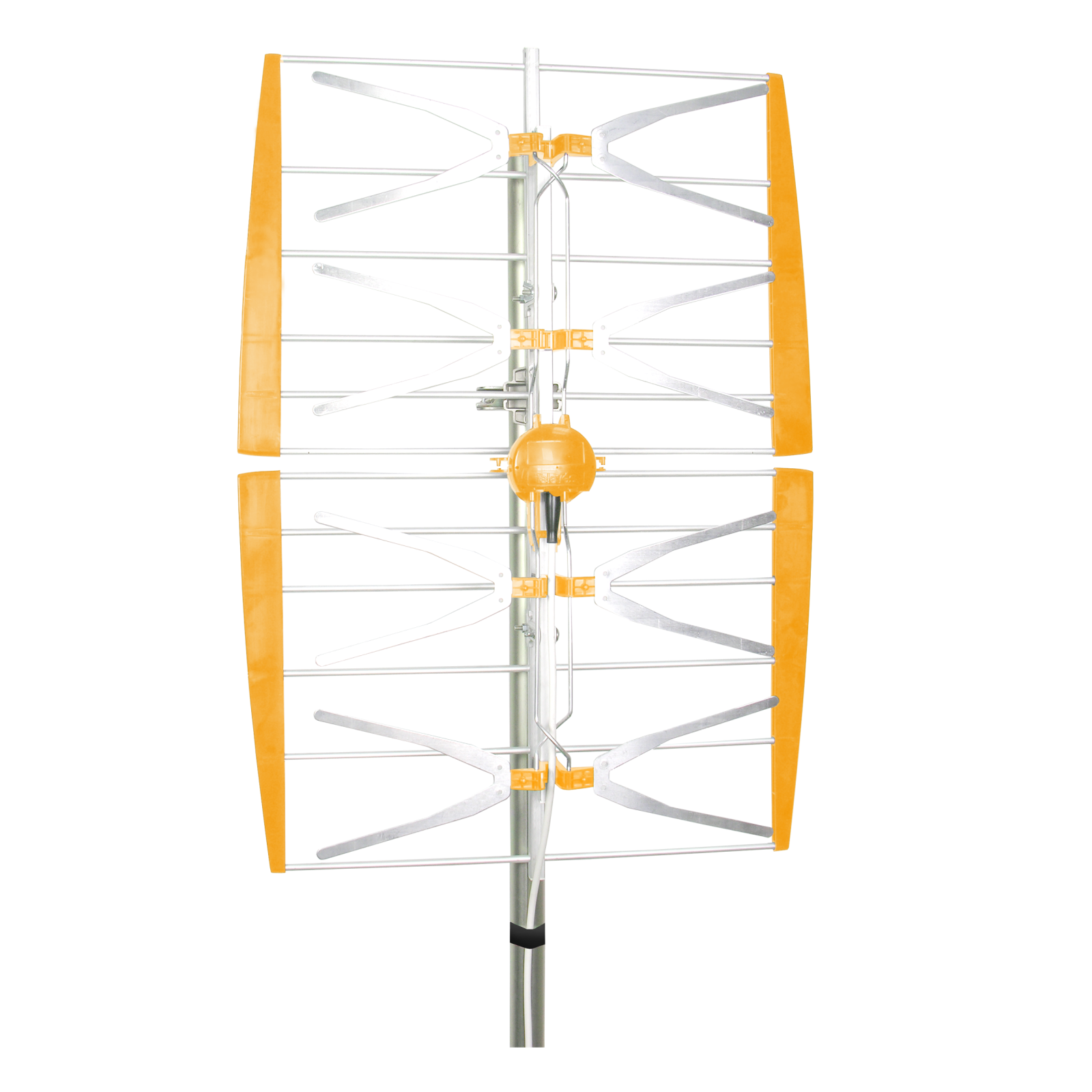

The stacked-dipole panel antenna is a structure containing an even number of dipoles (4 in this case), separated in such a way that their effects multiply, which produces a medium-gain exceptional bandwidth antenna. The flat reflector is equipped with 12 elements. It is therefore an antenna designed for scenarios where the UHF signal comes from different directions.



Supplied in individual packing.

Description

Discover
  • Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
  • The mast-mounting  system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
  • Designed and manufactured in Europe, our products undergo the most stringent quality controls
  • The connection box includes a balun for impedance matching
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth º 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
