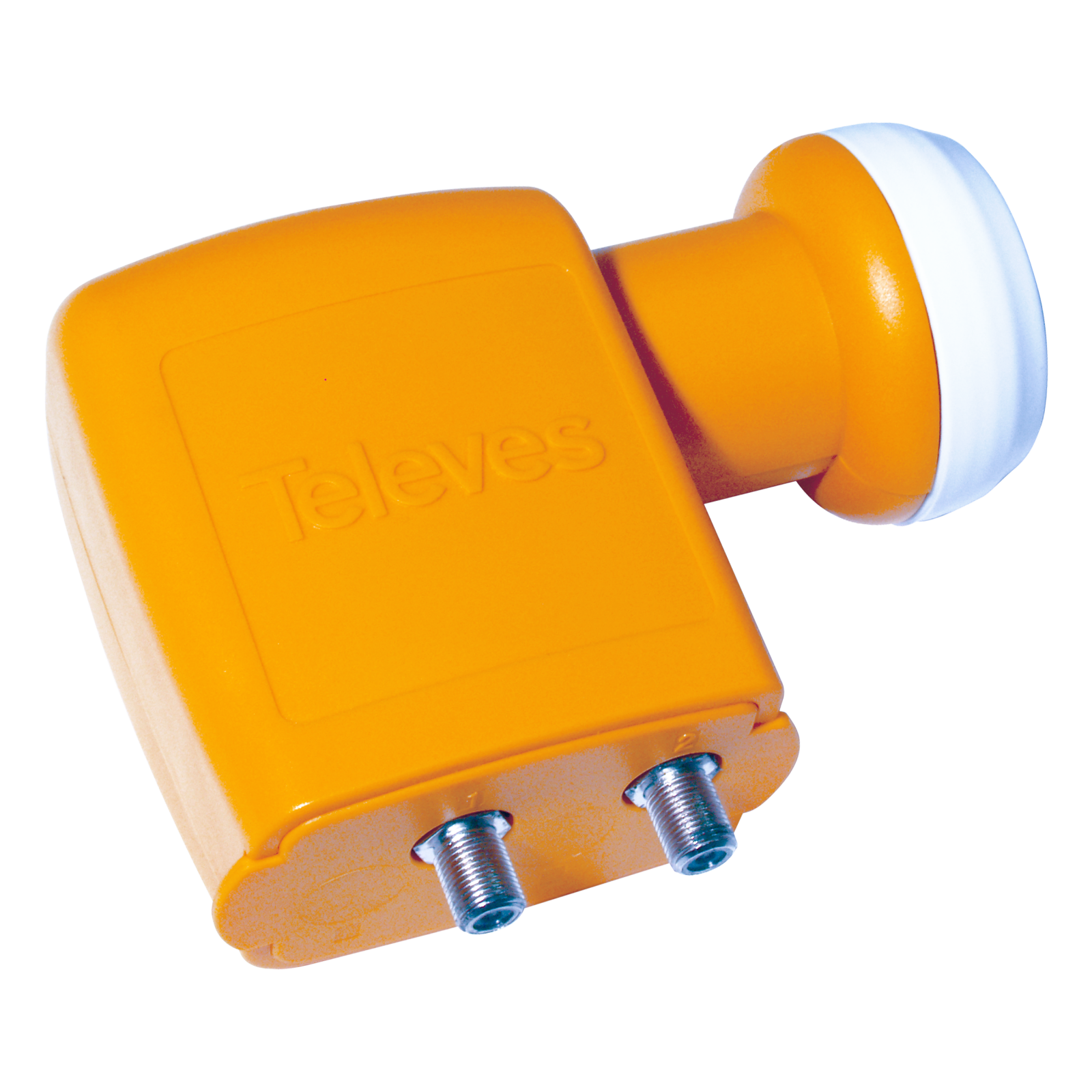

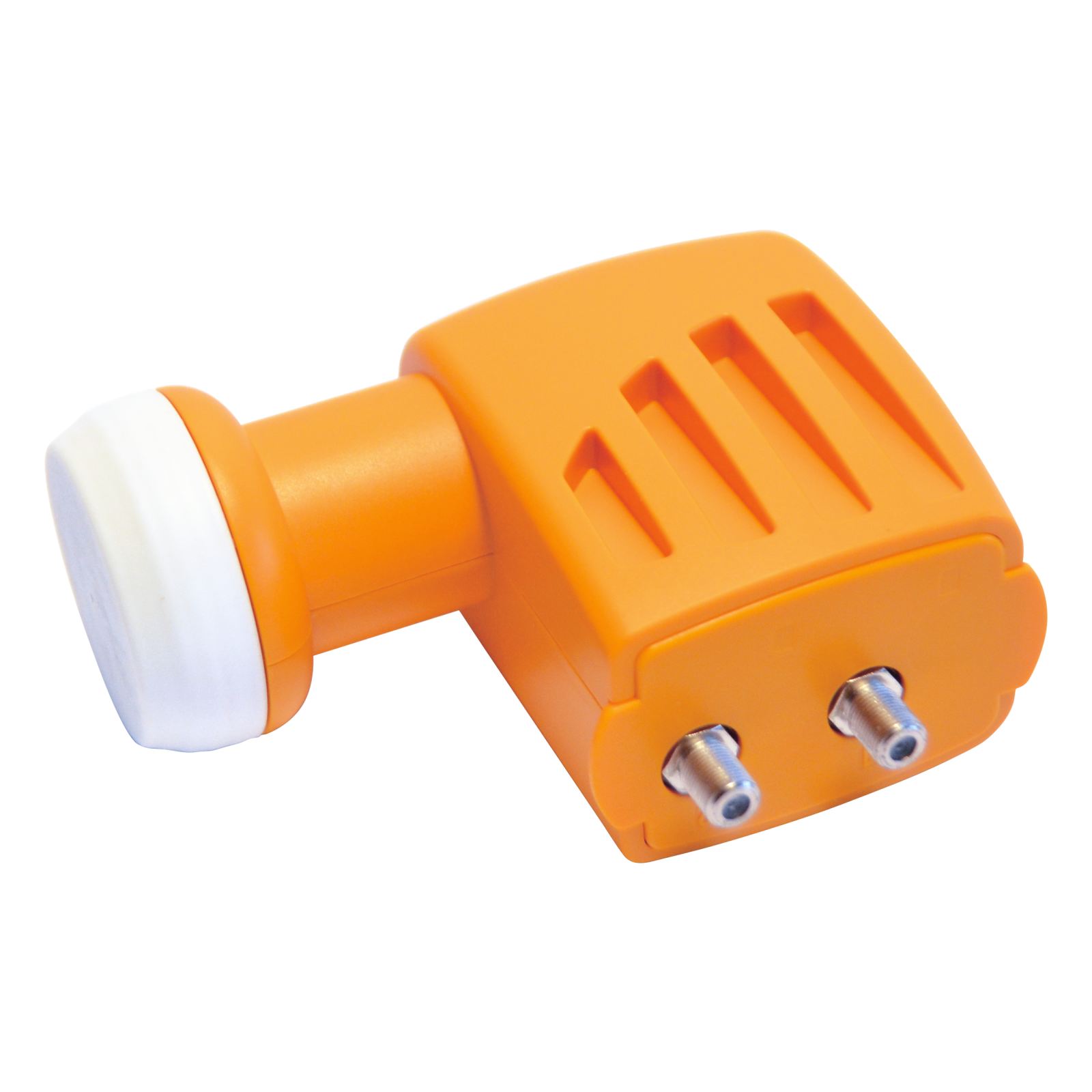

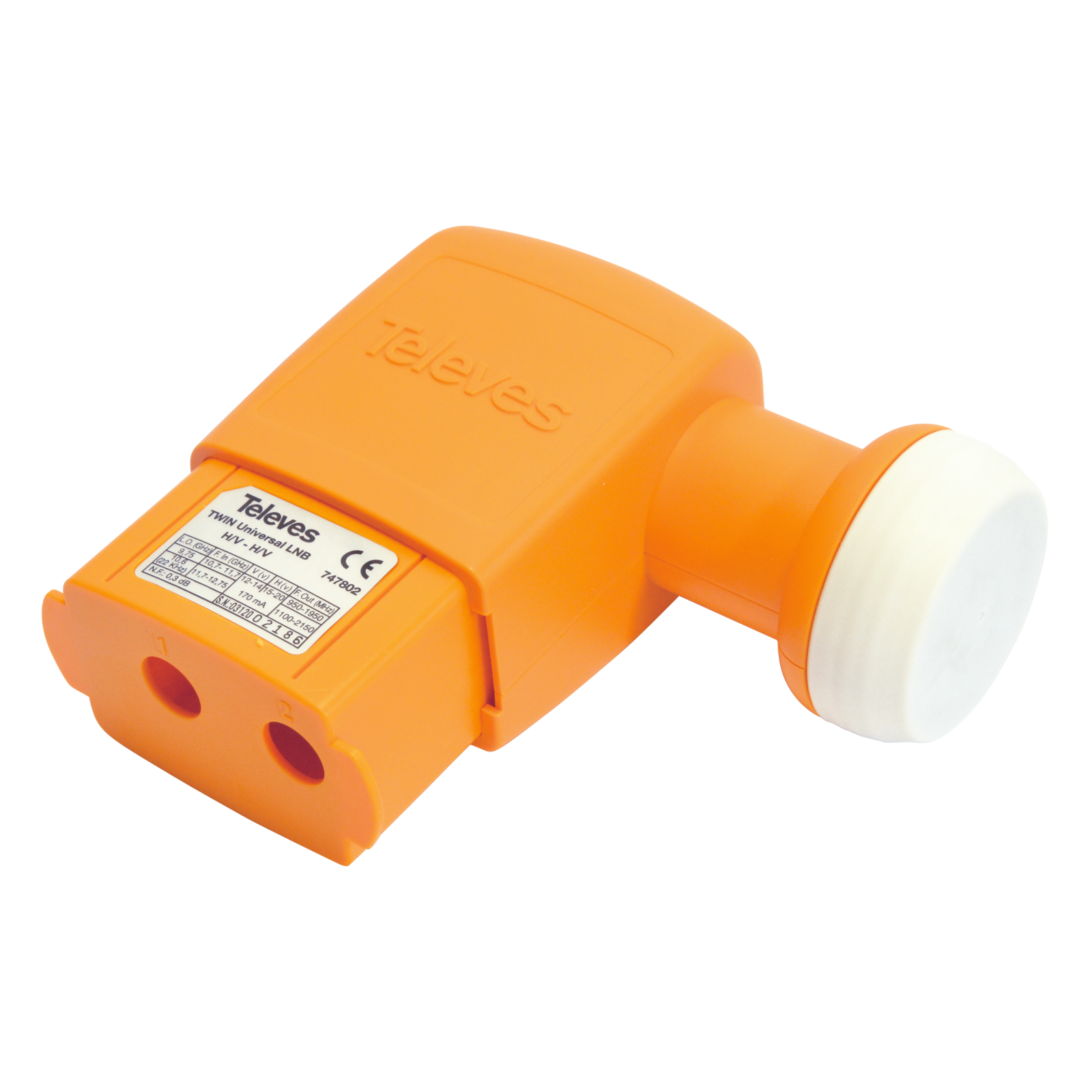

Twin LNB offset 2 outputs: Hh/Vh/Hl/Vl

Twin LNB converter, equipped with two universal outputs, each with the four polarity/band combinations (Hh, Hl, Vh, Vl).
Categories: , , , Tag: Brand:

Description

  • Highlights
    • Low visual impact design and small casing
    • High gain
    • Low noise figure
    • Outstanding linearity and careful equalization
    • High discrimination between polarities
    • Very high IP protection index (IP66)
    • Can be used under extreme temperature conditions
    • Light-weight
    • Compatible with 40-mm supports
    • Low power consumption
    • Power feeding either through the receiver or the multiswitch
    • Simple connection
    • Multisatellite-compatible solutions
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth º 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
