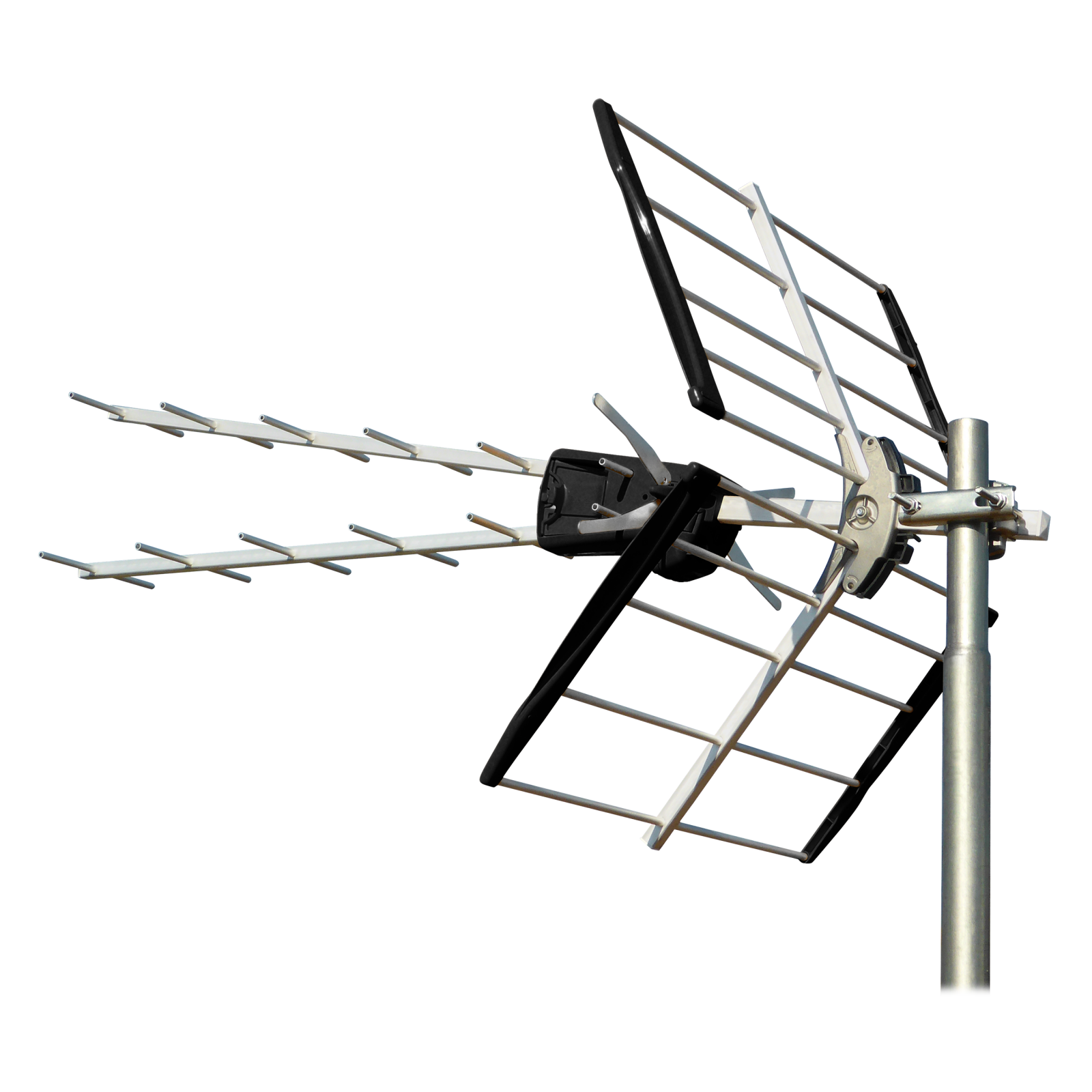

V Zenit antenna UHF, 2nd Digital Dividend (LTE700)

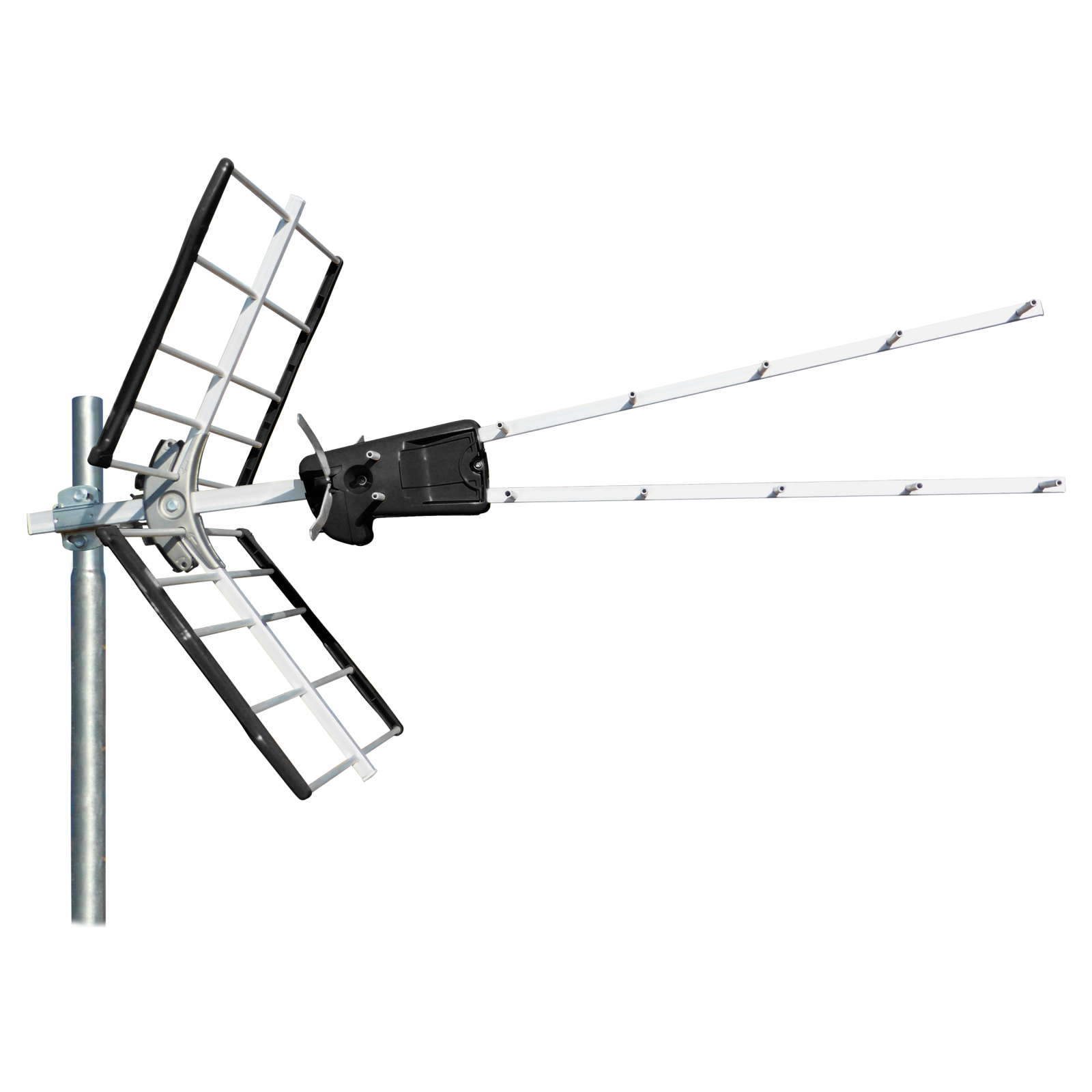

V Zenit antenna UHF, 2nd Digital Dividend (LTE700) - Image 2

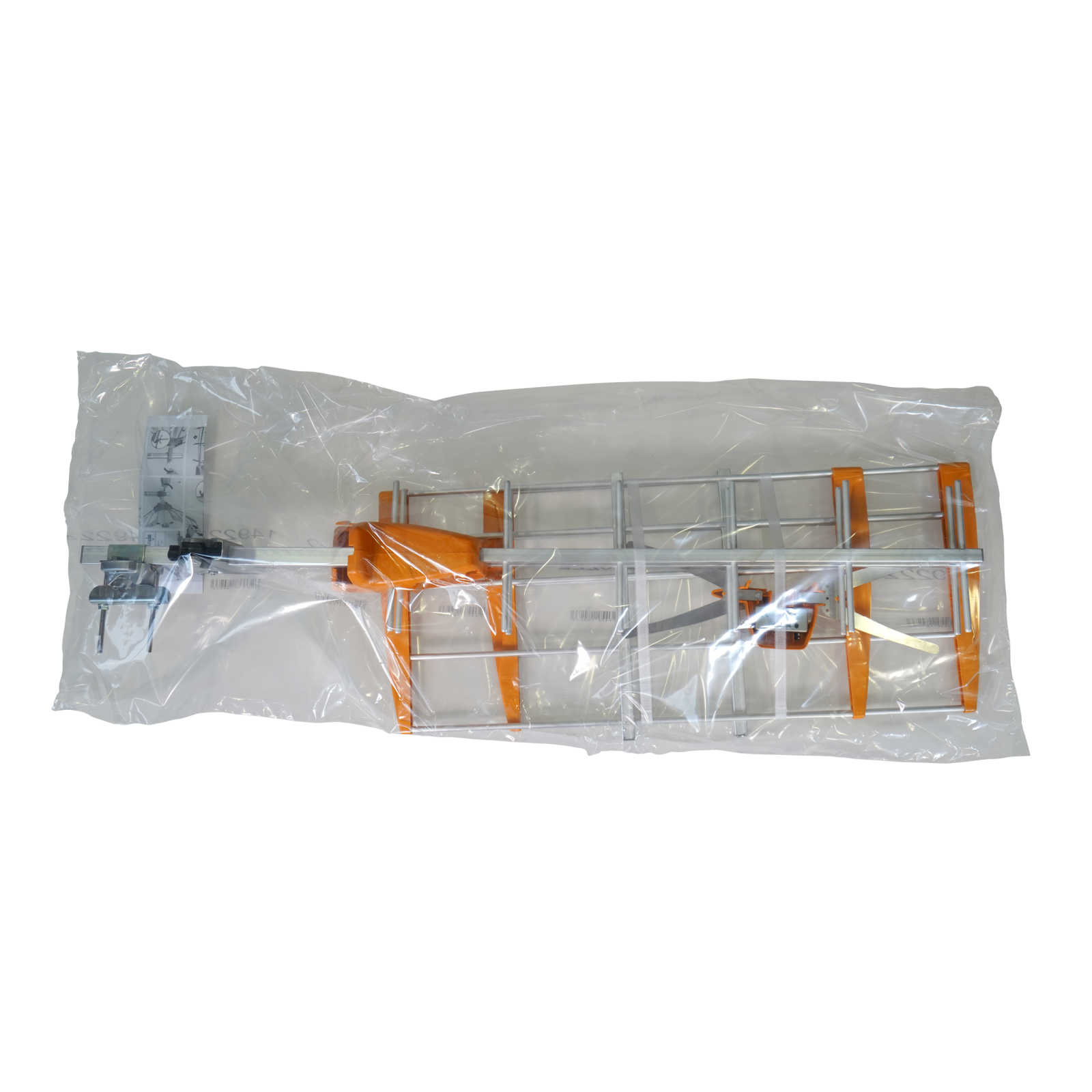

V Zenit antenna UHF, 2nd Digital Dividend (LTE700) - Image 3

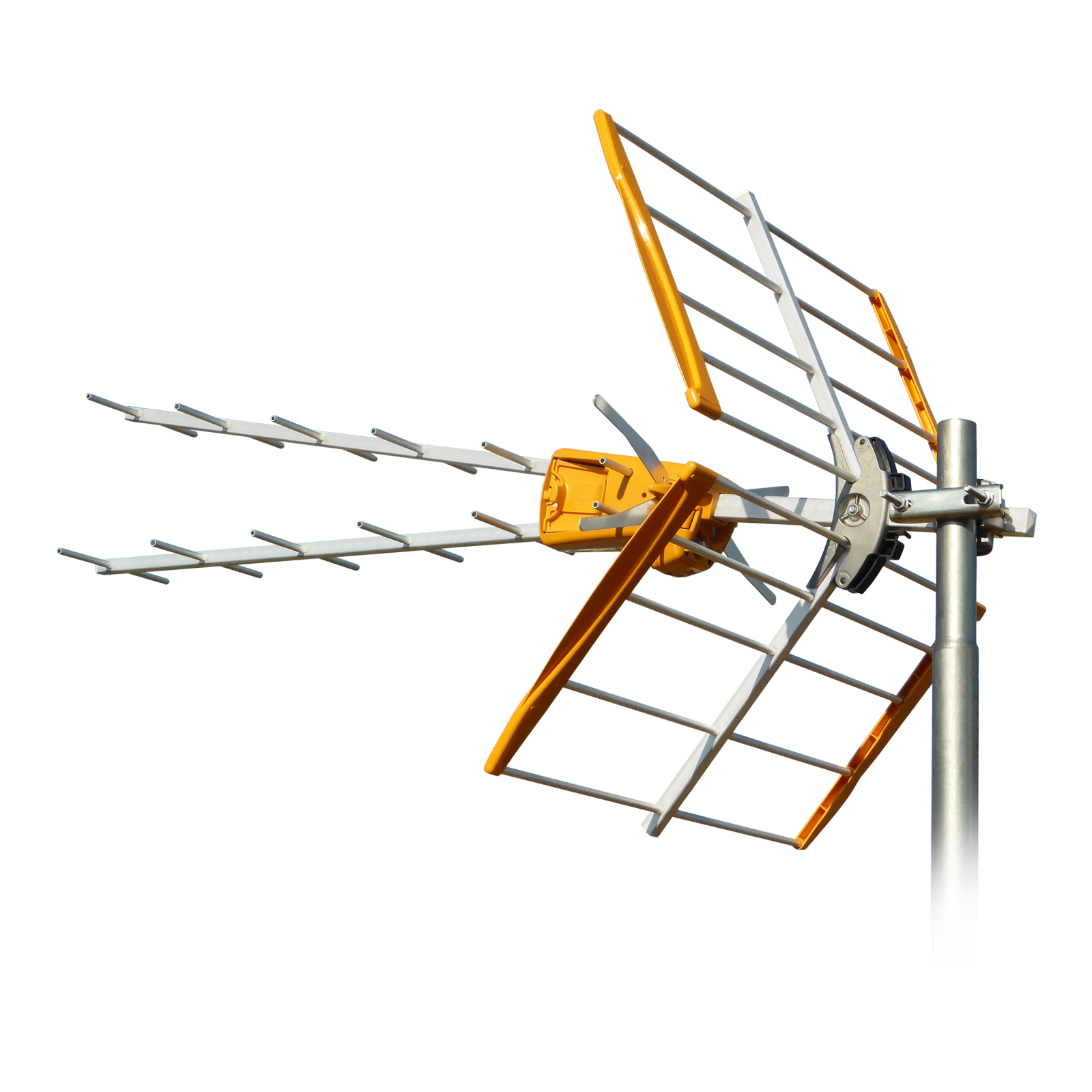

V Zenit antenna UHF, 2nd Digital Dividend (LTE700) - Image 4

V Zenit antenna UHF, 2nd Digital Dividend (LTE700)

The best balance between robustness and compactness

The VZenit antenna has a V-type structure: it consists in two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length.
For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48). This makes it suitable for the 2nd Digital Dividend (LTE700).
Categories: , , , , Tag: Brand:

Description

Highlights
  • Quick and secure reflector assembly system
  • Robust mechanics with outstanding performance in vibrating situations
  • Compact: excellent ratio between gain and length
  • Flatness of the frequency response in the UHF band
Discover
  • Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
  • The mast-mounting  system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
  • Designed and manufactured in Europe, our products undergo the most stringent quality controls
  • The connection box includes a balun for impedance matching
Bands UHF
Frequency range MHz 470 ... 694
Channels 24 ... 48
BOSS mode ON
Gain dBi 44
Output level Auto*1
Powering 12 ... 24
Max. current mA 40
Beamwidth º 25
F/B ratio dB > 25
Wind load (@130Km/h) N 149.76
Wind load (@150Km/h) N 205.92
Mast diameter mm 20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g
Gross weight: Gross weight: 4,384 g
Width: Width: 897 mm
Height: Height: 1,843 mm
Depth: Depth: 554 mm
Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
