V Zenit MIX antenna BIII/UHF, 2nd Digital Dividend (LTE700)

The best balance between robustness and compactness

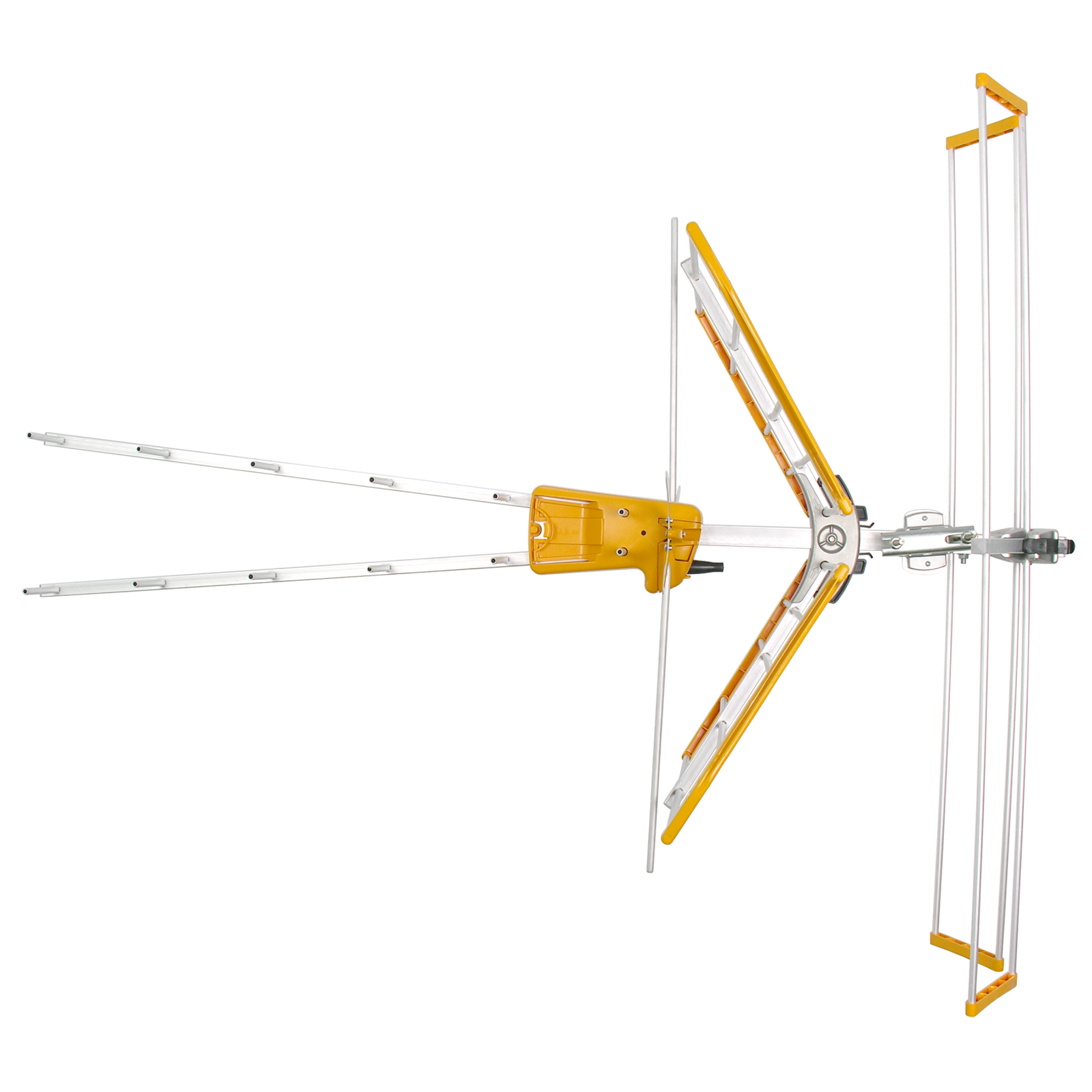

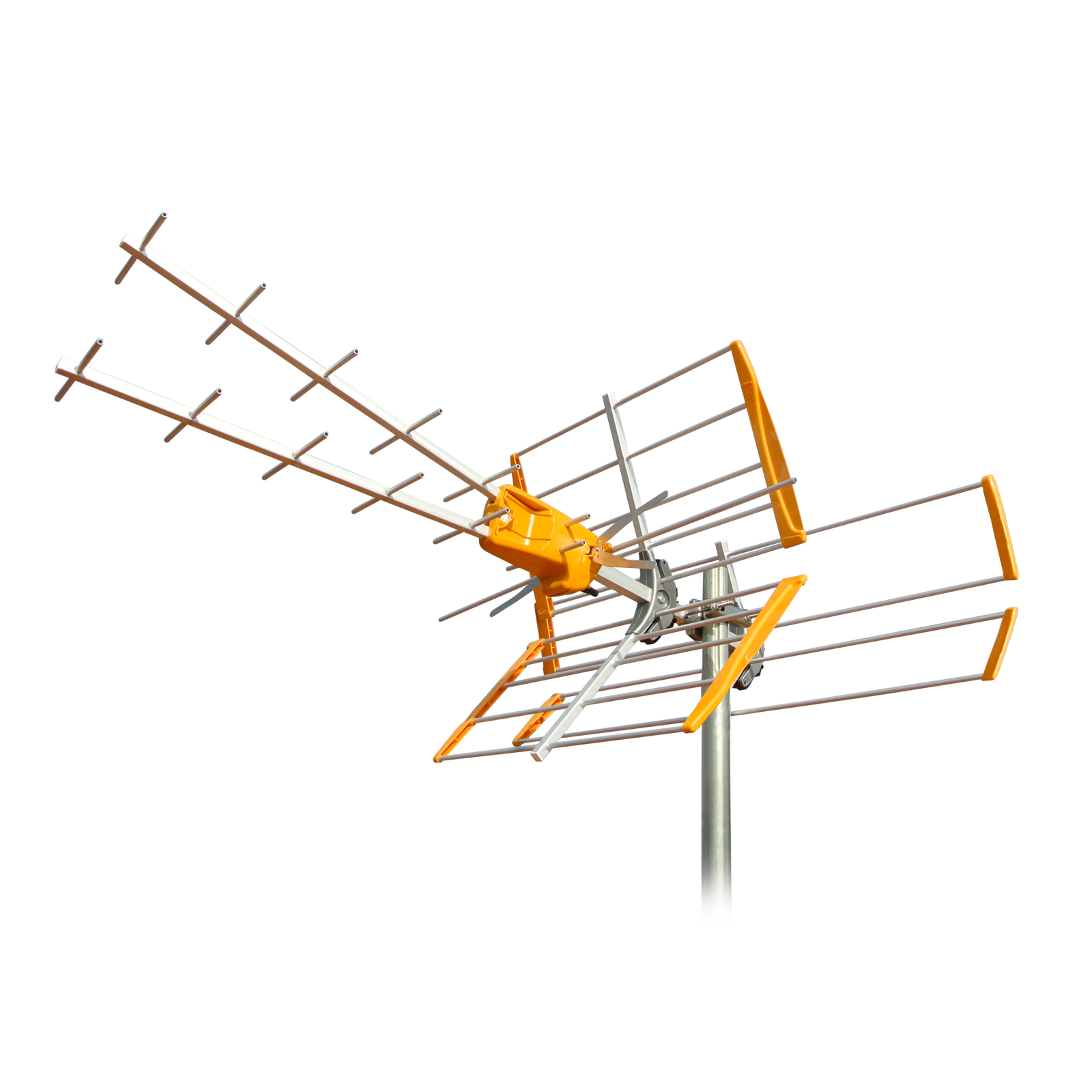

The V Zenit MIX antenna combines two antennas in one for a mixed reception. The UHF part consists in a V-type structure, formed by two vertically stacked Yagi in phase, which provides an exceptional rate of gain to compactness. Additionally, a dipole and a set of specific reflectors are added for BIII reception.

For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48). This makes it suitable for the 2nd Digital Dividend (LTE700).

Description

Highlights

Quick and secure reflector assembly system
Robust mechanics with outstanding performance in vibrating situations
Compact: excellent ratio between gain and length
Flatness of the frequency response in the UHF band

Discover

Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
The mast-mounting system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
Designed and manufactured in Europe, our products undergo the most stringent quality controls
The connection box includes a balun for impedance matching

Bands		UHF
Frequency range	MHz	470 ... 694
Channels		24 ... 48
BOSS mode		ON
Gain	dBi	44
Output level		Auto*1
Powering		12 ... 24
Max. current	mA	40
Beamwidth	º	25
F/B ratio	dB	> 25
Wind load (@130Km/h)	N	149.76
Wind load (@150Km/h)	N	205.92
Mast diameter	mm	20 ... 50

*1 *1 The gain is automatically adjusted according to the level of output

Physical data

Net weight: Net weight: 3,459 g

Gross weight: Gross weight: 4,384 g

Width: Width: 897 mm

Height: Height: 1,843 mm

Depth: Depth: 554 mm

Main product weight: Main product weight: 3,459 g

Packing

Box 1 Units
